Hand Held Scanners - Ceia PD140VR

Enhanced Hand Held Metal Detector

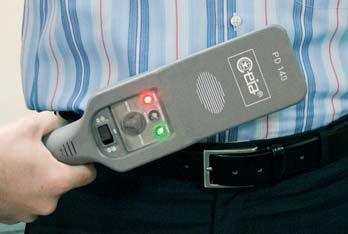

The PD140 Enhanced Hand Held Metal Detector is a high sensitivity device designed to detect magnetic and non-magnetic metal masses.

The unit can be used to detect weapons, detonators and other small pieces of metal concealed in baggage or correspondence.

The bidirectional detection probe allows both sides to detect metals evenly. The sensitivity of the surface is enhanced by the shape making operation of the device reliable and easy to operate.

The PD140 Metal Detector is available in two standard sensitivity versions: PD140V and PD140VR (model equipped for no-contact induction battery charger). Both are available with a 9V dry battery or rechargeable Ni/MH batteries.

Ceia PD140VR
Scan-X Security
Scan-X Security
Scan-X Security
Ceia PD140VR
Scan-X Security
Scan-X Security
Scan-X Security

Click on an image to enlarge

PD140VR
Scan-X

Ceia PD140VR - Features & Specifications

Technical Features
Power Supply
PD140V: 9V dry battery or 9V NiMH with contact charger
PD140VR: 9V NiMH with BC140F inductive charger
Three-position switch with selection of two different alarm modes Simultaneous optical and acoustic alarm.
Built-in buzzer (75 dBA at a distance of 90 cm)
Optical alarm and handle vibration
  • Sensitivity adjustment by means of a three-position external selector
Battery life in continuous operation with alkaline batteries: 150 hours max
with NiMH batteries: 40 hours max
Indicator lamps for Power on (green light)
Alarm (red light)
Low battery charge (blinking yellow light)
Operating temperature -15°C to 65°C (relative humidity: 0 to 95%)
Dimensions 340 x 80 x 55 mm
Weight (with battery) 0.400 kg
  • Manufactured in grey, shock-resistant Polycarbonate and ABS blend
  • Conforms to the international standards currently applicable for electrical safety, E.M.C. and to the applicable CE regulations
BC140F - Fast Inductive Battery Charger

The BC140F unit provides recharging, without electrical contact, of the NiMH batteries in the PD140VR Metal Detectors. The BC140F battery charger is designed to be able to be connected in cascade with other similar devices.

Technical Features
Power Supply 90-265Vrms, 50/60 Hz, 4 W
Recharging Time 4 hours or less (complete cycle)
ON/OFF Switch with indicator lamp
Dimensions 82 x 155 x 97 (h) mm
Weight 0.500 kg
Length Of Mains Cable 1.80 m
  • Connection in cascade with other similar devices (up to 20 units)
  • Length of cable for connecting units in cascade: 0.17 m
  • Manufactured in grey, shock-resistant ABS
  • Conforms to the international standards currently applicable for electrical safety, E.M.C. and to the applicable CE regulations
V140 - Carrying Case

The V140 carrying-case, in shock-resistant material, is designed to contain the following items: a PD140 Hand Held Metal Detector, a test piece, a BC140F fast battery-charger, a power supply cable and the instructions for use.

Technical Features
Dimensions 445 x 300 x 180 mm
Weight 2.300 kg including PD140 and battery charger
  • Shock-resistant ABS construction and the special storage compartments make the V140 carryingcase the ideal, safest and most compact means of transporting the PD140
  • Conforms to the international standards currently applicable for electrical safety, E.M.C. and to the applicable CE regulations

PDFClick on the icon to download a full Specification Sheet in Adobe Acrobat PDF format
